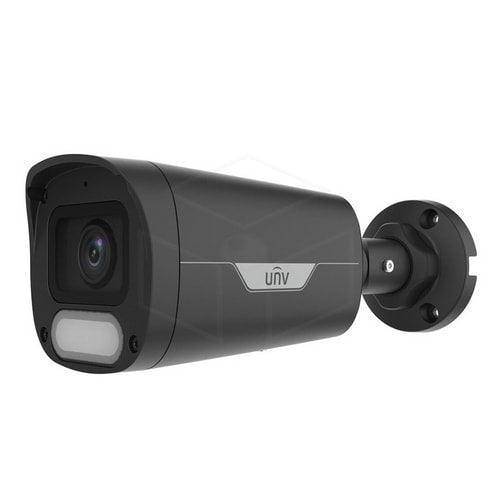

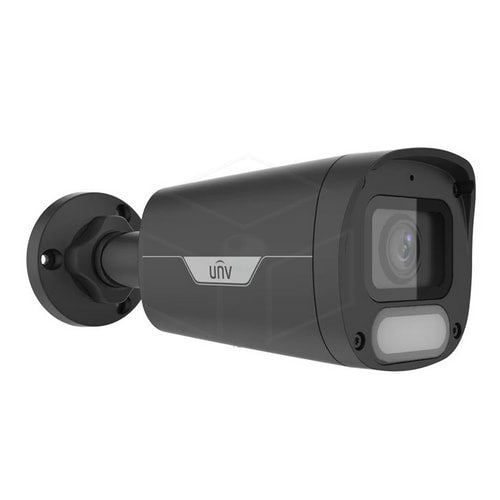

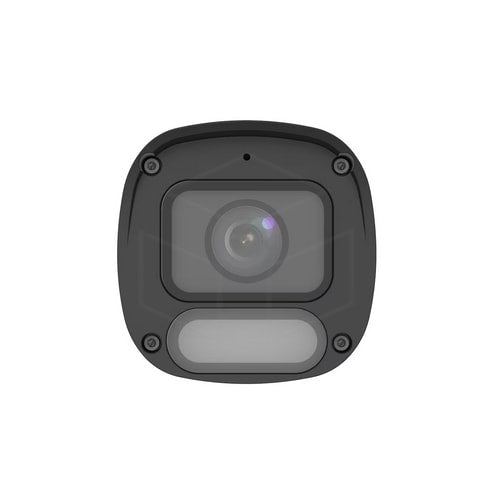

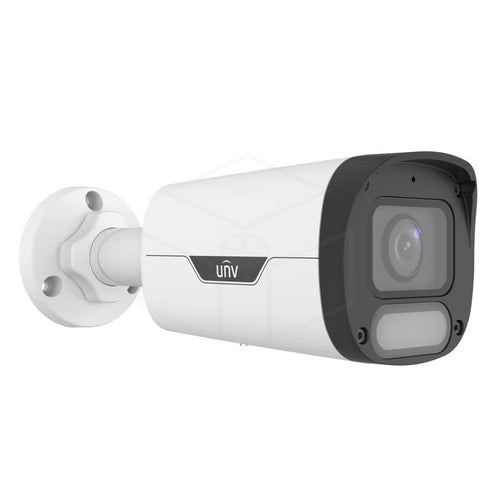

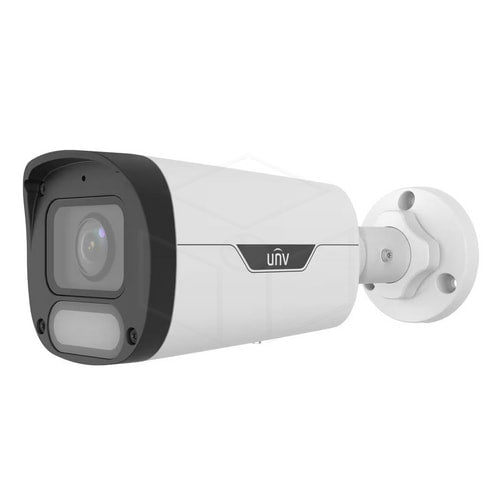

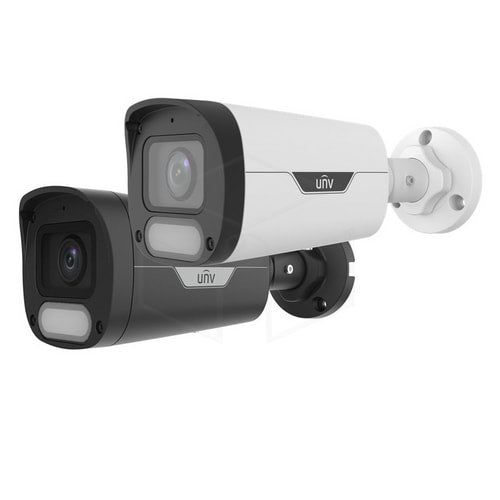

Uniview 4MP OwlView Bullet Camera (IPC2314LE-ADF28KM-WP)
Product Description
The IPC2314LE-ADF28KM-WP is a 4MP IP Bullet Camera with groundbreaking WISE-ISP technology that delivers color images in extremely low light conditions! Additionally, the camera is NDAA compliant, so you can use it in federal facilities and projects. This camera series can process color images without IR or white light illuminators, so there is no limitation on the illumination range.
In addition, the IPC2314LE-ADF28KM-WP has Ultra Motion Detection which can distinguish between vehicles, people and non-motorized vehicles. This means you can set your alerts to specific objects. Furthermore, the weatherproof ratings of this professional camera are IP67, so you have maximum protection against the elements. This camera also has a built-in MicroSD card slot for on-board recording. With On Board Recording, you have redundancy for your important data. A built-in microphone allows for audio monitoring and recording to your NVR. Even better, Uniview cameras have a wide voltage range and are suitable for Long Range PoE runs of up to 300 meters (820 feet) when used with a Uniview NVR. Therefore, no additional equipment is required for long cable runs.
More features
ON BOARD STORAGE
This Prime Series UNV IP Turret Dome also has a MicroSD card slot for On-board Recording. On-board recording can be used as redundant video storage with data saved even if the network connection is lost.
REAL WDR
The IPC2314LE-ADF28KM-WP Bullet features True 120dB WDR (Wide Dynamic Range). Scenes with variable light range are difficult for most cameras to capture. However, with True WDR cameras, scenes are rendered in full detail for both bright and dark areas at the same time. This is especially useful in applications such as entryways where you may have dim lighting indoors, but your door or windows have bright sunlight. Check out our example image below!
DETECTION OF GENES CROSSING
Perimeter Detection functions include Line Crossing Detection, Entrying and Area and Leaving an Area detection. Smart function provides better target classification. Therefore, false alarms are greatly reduced.
UNV cameras are packed with advanced features and are among the easiest to install systems we have seen. Uniview Prime Series cameras and NVRs are Plug and Play IP! Uniview cameras and NVRs have been installed in major applications around the world. We are excited to be a Uniview distributor and provide professional IP solutions that are packed with features and affordable.
PLUG & PLAY
If you are creating a new system from our Uniview cameras, installation is incredibly easy with our Uniview line of POE NVRs. Simply plug the camera into the back of the Uniview NVR and you will have video instantly on the recorder’s HDMI interface. You can also view and manage the NVR via free desktop and mobile apps, such as EZView and EZStation.
ONVIF COMPATIBILITY
If you want to add this camera to an already set up security system, that is no problem. This camera complies with the protocols set up by the Open Network Video Interface Forum (ONVIF). This means that as long as your current recorder is ONVIF compliant, you can set up this camera with your current system.
REMOTE ACCESS
The IPC2314LE-ADF28KM-WP is part of our Uniview line of products. As such, it is packed with features that would please a power user, yet is simple enough for a beginner to use. Easily view and manage your cameras and recorders from anywhere in the world with the free mobile and desktop applications. For the power user, these apps give you the ability to adjust advanced settings on the fly. For the beginner, you can use the apps to easily view live feeds and play back recorded video. Whatever you need to accomplish, it's all at your fingertips.
Specifications
Camera Model | IPC2314LE-ADF28KM-WP |
Form factor | Bullet |
Resolution | 4MP |
Maximum resolution | 2688 x 1520 |
Frames per second | 25 frames per second |
Image sensor | 1/1.8", 4.0 megapixel, progressive scan, CMOS |
Lens Type | Fixed |
Focal length | 2.8mm |
Field of view | 110.4° |
Relief | LED |
Warm light range | Up to 30M |
Video compression | Ultra H.265, H.265, H.264 |
Maximum video bit rate | 16 Mbps |
Weatherproof classification | IP67 |
Vandalism resistant classification | AFTER |
Audio | Built-in microphone |
Compatible with Onvif | Yes |
Intelligent events | Cross line, intrusion (based on human body detection), motion detection, ultra motion detection, tamper alarm, audio detection |
Dimensions (Ø x H) | Φ118x106mm (Ø4.6” x 4.2”) |
On-board storage | Up to 256 GB |
Power supply | DC 12V ± 25%, PoE (IEEE 802.3af) |
Power consumption | Max 7.5w |
Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
Weight | 0.48kg (1.06lb) |
