Milesight MS-C2975-PB Weatherproof Mini Dome 2MP 3.6mm
Regular price
€155,00
Tax included.
Shipping calculated at checkout.
Product Description

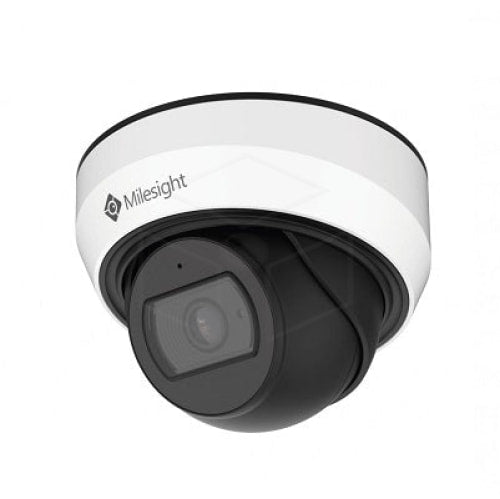

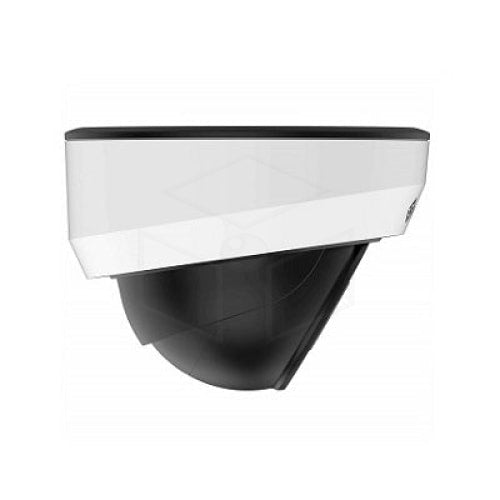

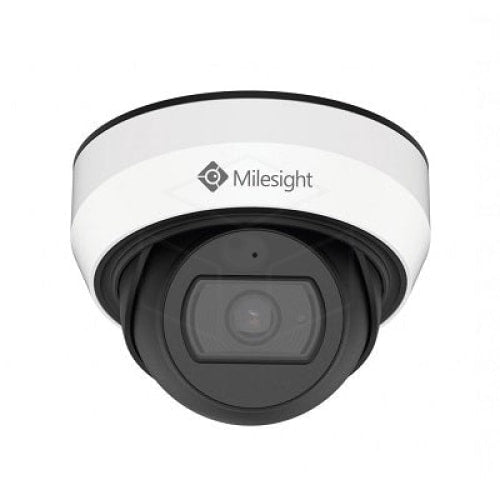

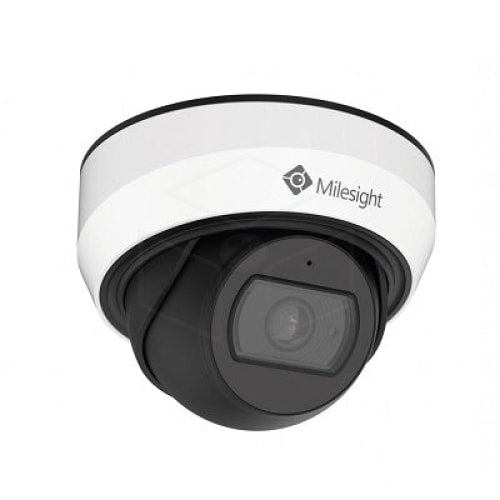

The MS-C2975-PB is a dome camera from the Milesight brand. The resolution is 2 megapixels and is equipped with a 3.6 mm fixed lens. This gives the camera a wide viewing angle of 90°. The camera needs little light to film clear images and has night vision up to 25 meters in the dark. The PoE port of the camera is directly on the print. This prevents a wiring harness and allows the camera to be installed compactly. The images can be viewed on a recorder or the camera can be installed standalone with a micro SD card. The MS-C2975-PB is suitable for mounting both indoors and outdoors and is vandal-proof.
More features
Stunning image quality and powerful IR light
Crystal-clear FullHD image quality ensures high-quality, sharp images day and night. The night image is illuminated by powerful IR LEDs, allowing the camera to see up to 25 meters in the dark. This important feature is especially emphasized here in Finland, where periods of dark time are long.
Ultra-wide 91° field of view
The dome camera is equipped with wide-angle optics, giving the camera a field of view of no less than 91 degrees. Thanks to the wide field of view, the camera can be installed even in tight spaces and close to the subject.
Made for circumstances
The Milesight Dome FullHD 2M IP IP security camera is designed for year-round use and can be used both outdoors and indoors. The camera can withstand harsh conditions thanks to its IP67 protection class. The compact mechanical design guarantees the functionality and long service life of the device, even in severe frost. Milesight therefore works in any situation.
The camera is also vandal-proof according to the IK10 standard, which means it can withstand even heavier abuse.
Easy installation and monitoring
Setting up the camera is very simple and easy with the Milesight Smart Tools connectivity program. The camera is powered by PoE technology via an Ethernet interface. There is only one cable for the camera, through which power and data pass. The camera does not need a separate AC power supply to work.
Versatile installation options
The dome camera can be mounted on the wall or ceiling. With the optional wall mount, the camera can also shoot straight down. Once installed, the dome camera is discreet and durable, and its orientation cannot be maliciously changed without tools.
Milesight AI AI Features
In video surveillance, AI will play an important role in intelligent video analysis, greatly improving surveillance performance and saving human labor.
Milesight's AI-powered cameras are equipped with a discrete AI chip with advanced algorithms that enable a number of intelligent functions such as identifying people and vehicles, and related functions.
Identification of persons and counting of visitors
Milesight AI cameras have advanced functionality for detecting people. For example, the system can indicate the number of people entering and leaving the door and the number of people inside.
Facial recognition function
AI surveillance cameras have advanced facial recognition capabilities. The camera can distinguish the following features, among others:
- Gender
- Specifications
- Face mask
- Age
Milesight VCA Features
Milesight VCA Video Content Analysis, or advanced video image analysis, provides advanced software features.
VCA functions
Entrance to the region
The Region Input function allows the camera to detect whether a target arrives in the selected area. From this, alarm and recording can be triggered.
Region Exiting
With Region Exit, the camera detects if a target leaves the selected area. From this, alarm and recording can be triggered.
Advanced motion detection
With Advanced Motion Detection, motion detection adapts to normal changes in the standard image, for example, motion detection. Trees sway and alerts only for abnormal movements.
Sabotage detection
With tamper detection, the camera detects if the image is obscured or if the camera is rotated.
Crossing of the line
With the Line Crossing function, the camera can detect the crossing of the line defined in the image by the direction of travel. This function is very useful, for example, on the road or in the doorway – the alarm can be activated, for example. only from incoming customers or vehicles.
Hanging out
With the Loitering function, the camera detects if an object enters the selected area and stays there for more than a certain time.
Human detection
With Humen Detection, the camera recognizes people from other objects and can trigger an alarm or recording
People counting
People Counting allows the camera to count people entering and exiting.
Security camera for versatile use
The surveillance camera can be controlled directly from the control panel that works with an Internet browser. A memory card can be inserted into the camera to record video independently. You can also send an e-mail alert with a photo.
You can also easily connect cameras to the NVR network recorder, allowing you to easily manage multiple different cameras. The recorder can be equipped with up to 4 TB of disk space, resulting in a long storage archive.
Thanks to ONVIF compatibility, the camera can also be connected to other compatible systems, such as ONVIF.
Specifications
| Lens | Fixed 3.6mm lens |
| Image sensor | Starlight, CMOS SONY 1/2.8" Progressive scan |
| Min. lighting | Color: 0.002Lux @F1.2, B/W: 0Lux with IR on |
| WDR (wide dynamic range) | WDR Ultra (140dB) |
| Deadline time | 1/100,000s ∼ 1s |
| IR distance | SMART IR 25m |
| Field of view | H91 degrees/D106 degrees/V50 degrees (4.0mm) |
| Max. distinction | 1920×1080 (Full HD) |
| Frame rate |
30fps(1920×1080), 30fps(1600×1200), 30fps(1280×960), 30fps(1280×720), 30fps(704×576) Three selectable image streams |
| Video compression | H.265 + /H.265(HEVC)/H.264 + /H.264/MJPEG |
| Video bit rate | 16Kbps~16Mbps (CBR/VBR adjustable) |
| Audio |
Integrated microphone G.711/AAC audio compression |
| Picture settings | Saturation/Brightness/Contrast/Sharpness |
| access to the web | IE/Firefox/Chrome/Safari browser |
| Ethernet | 1 x 10/100 Mbps |
| Network protocols | TCP/IP / UDP / RTP / RTSP / RTCP / HTTP / HTTPS / DNS / DDNS / DHCP / FTP / NTP / SMTP / UPNP / SIP etc. |
| Smart video | Motion detection, protective mask, backlight compensation, 3D noise reduction, ROI |
| SIP/VoIP support | YES, Voice&Video-over-IP |
| Video Analysis Function (VCA) |
10 detection functions included: zone entry detection zone exit detection advanced motion detection detection of unauthorized camera manipulation line crossing detection detection of suspicious movements in the zone detection of people people counting object loss put the object aside |
| Triggering an event | VCA, motion detection, network connection, audio, sabotage alarm against unauthorized access |
| Event action | FTP / SMTP / SD card / SIP phone |
| System Compatibility | ONVIF profile S & G & T |
| Anti-vandalism certification | K10 certificate |
| Protection degree IP | IP67 |
| Operating temperature | -40°C - 60°C |
| Control humidity | 0-90% (non-condensing) |
| Power supply | PoE (802.3af) / DC 12V ± 10% |
| Power consumption | 2.5W MAX / 4W MAX (with IR enabled) |
| Dimensions | Φ108mmX96.5mm (junction box version) |
| Mass | 600g including mounting box |
