Ajax ManualCallPoint (White)
Regular price
€109,00
Tax included.
Shipping calculated at checkout.
Product Description

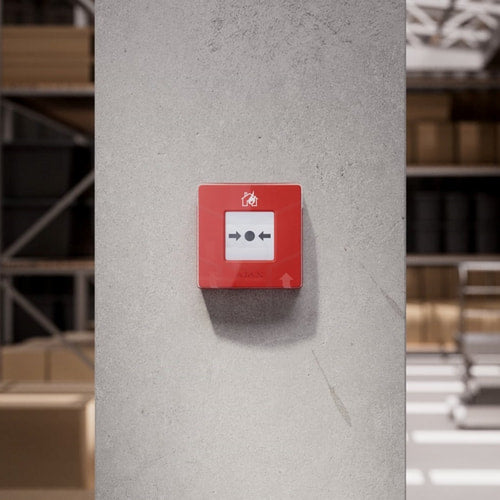

ManualCallPoint is a quick and easy way for anyone to raise the fire alarm. Pressing a button activates the built-in sirens of all fire detectors in the system and informs the users. In the meantime, the monitoring station receives the alarm and contacts the emergency services. All data is immediately available in the Ajax apps: which device was triggered, when and where. In a life-threatening situation, Ajax’s innovative features follow up on an alarm within seconds: automation scenarios switch off the power to the premises, switch on the emergency lighting, and unlock the exits
More features

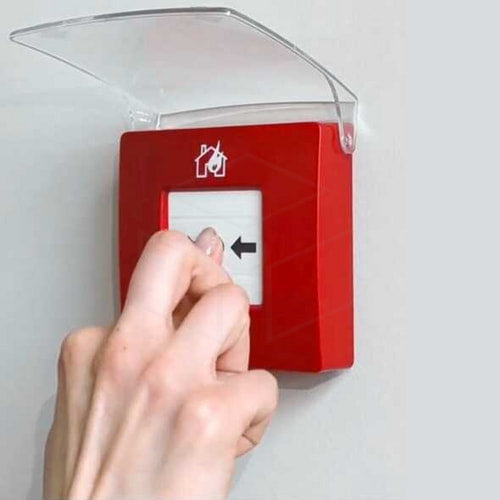

Activation of fire alarm sirens
by pressing the button
Spring-loaded button mechanism
with a minimum of moving parts to reduce the chance of failure
However, unlike the Red model, the Blue, Yellow, Green, White model allows you to disable alarm transmission to the control room.
ManualCallPoint Four colors same functions
(Blue, Yellow, Green, White)
- Green manual call point designed for business center.
- Yellow manual call point designed for industrial buildings.
- Blue manual call point designed for educational institution.
- White manual call point designed for public space.
- Red manual call point designed for residential buildings.
Specifications
| Compatibility |
Control panels Signal boosters |
| Jeweller communication technology | Two-way communication. Advanced anti-sabotage. Block cipher with a dynamic key. Direct notifications. Remote configuration via the Ajax apps. |
| Frequency bands | 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz |
| Maximum effective radiated power (ERP) | up to 25 mW |
| Modulation of the radio signal | GFSK |
| Range of the radio signal | up to 1,700 m |
| Encrypted communication | All stored and transmitted data is protected by a block cipher with a dynamic key. |
| Frequency hopping | Radio communications uses frequency hopping to avoid interception and interference. |
| Recommendations | The ManualCallPoint button is available in several versions. |

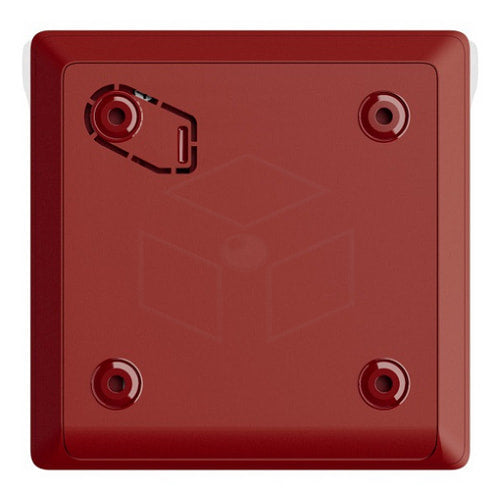

| Sabotage alarm | Warnings of attempts to disengage the button from the surface or to remove the detector from the mounting panel. |
| Protection against spoofing | device verification |
| Communication loss detection | after 36 s |
| Batteries | 2 × CR123A |
| Dimensions | 102 × 104 × 39 mm |
| Weight | 214 g |
| Operating temperature range | from 0 °C to +50 °C |
| Operating humidity | up to 80% |
| Models | ManualCallPoint (White) Jeweler |

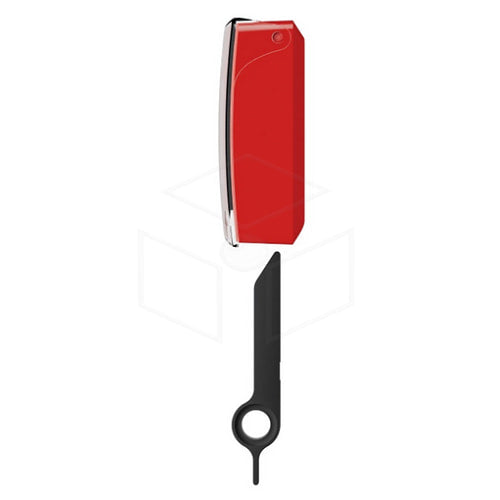

| Full set | ManualCallPoint Jeweller Special tools (key) 2 x CR123A batteries (pre-installed) Installation kit Quick Start Guide |
